Settings > CT32-DLL

Setting-page for searching and defining the smartcard-reader-interface (CT32 - DLL) for memory chip cards.

Depending of the card reader an activated CT32-DLL can lead to problems with processor smartcards (e.g. Certificate smartcards). In this case deactivate the CT32-DLL.

According to program version individual properties can be missing or varying!

Setting pages

CT32 - DLL
- CT32 - DLL Settings
- CT32 - DLL Advanced Settings

	CT32 API Search	Search for CT32.DLL on this computer! The CT32.DLL or CT32-API is an interface between memory cards and the corresponding application. You should enable the CT32-API only in EMERGENCY, if the ordinary reader access via the PC / SC - interface is not working. The CT32-API is not offered or distributed by any reader - Manufacturers. We offer a general search engine, but can not absolutely sure that the found CT32.DLL is the right one for your reader. Please contact the manufacturer of your card reader in an emergency.
	Edit Smart Card	The software can only use memory cards as a key, if it contains data. If you have a new memory card without any data, you can describe it here. This function is not always possible because of the variety of card readers and smart cards.
	Subpages	Settings: CT32 - DLL search Settings: Read and write on smart card

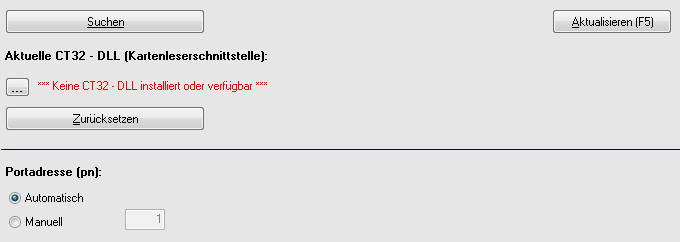

Settings

1.	Search	Search on your computer for a CT32 -DLL (smartcard-reader-interface). This process can need some minutes.
2.	Refresh	Update the settings.
3.	Current CT32 - DLL	Display the installed CT32 - DLL. With ... can be selected an individual CT32 - DLL.
4.	Reset	Remove the link to displayed CT32 - DLL.
5.	Portadress (pn)	Indicate the port address of the card reader. With Automatic the program search the card reader at all ports. If you know the correct port, you can insert the port address for speed up.

Advanced Settings

1.	Read card	Read data over CT32-DLL from the memory card and list in field 10. Currently supported EEPROM memory chip cards SLE 4432 and SLE 4442. See compatibility on Hompage!
2.	Write card	Write the data from box 5 to the memory card.
3.	Write card with PIN	Write the data from box 5 after PIN entry to the memory card.
4.	Fill with random	Fill box 5 with random numbers.
5.	Hex editor box	Hex editor box for the display and editing of data. On the left are the hex values and on the right side of the plain text.
